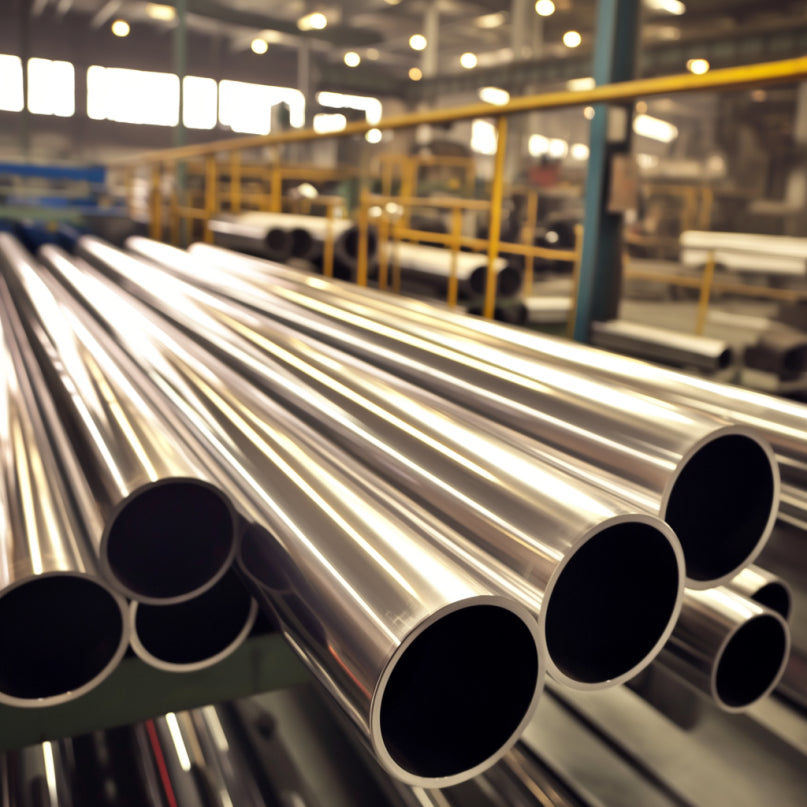

1/2" 304 316 stainless steel tube/pipe

1/2" 304 316 stainless steel tube/pipe

Contact form

Product Overview

Grades:
304 Stainless Steel: General-purpose grade with excellent oxidation resistance, widely used due to its balance of strength, corrosion resistance, and affordability. It is non-magnetic and easily fabricated, making it ideal for a variety of structural and industrial applications including stainless steel tube and wire mesh.
316 Stainless Steel: Enhanced corrosion resistance with added molybdenum, providing superior protection in marine, acidic, or high-humidity environments. This makes 316 stainless steel ideal for chemical processing, saltwater exposure, and cleanroom equipment.

Key Applications:
Stainless steel filter tube 304/316: Perfect for filtration in water treatment plants, HVAC systems, chemical reactors, and clean air environments. These tubes are durable under high-pressure flows and corrosive atmospheres, providing long-term reliability.



Stainless Steel Tube 304 vs. 316

Property 304 Stainless Steel 316 Stainless Steel
Corrosion Resistance Good for mild environments, including food and indoor air handling. Excellent for harsh conditions (saltwater, acids, industrial solvents).
Cost More affordable and widely available. Slightly higher due to added molybdenum and enhanced performance.
Strength Comparable mechanical properties suitable for structural use. Slightly higher yield strength and better performance in mechanical stress.


Key Specifications

Parameter Details
Sizes OD: 1/4"–24", ID: 0.063"–22.2" (metric equivalents available). Suitable for all standard and custom stainless steel tube assemblies.
Wall Thickness Standard: Sch. 40–160 (0.254–5.08mm), customizable per request for special-purpose piping or stainless steel filter tube 304/316.
Lengths 6m (20ft), 12m (40ft), or cut-to-length. Available in seamless and welded forms.


Standards Compliance

  • ASTM A53/A53M: Standard specification for pipe manufacturing ensuring structural integrity.

  • ASME B31.3: Certification for high-pressure process piping in industrial systems.

  • Other Certifications: ISO 9001, SGS, RoHS tested for environmental and safety standards.



Technical Properties

Mechanical:

  • Tensile Strength: ≥57,000 psi (304 Stainless Steel); ≥55,000 psi (316)

  • Yield Strength: ≥20,500 psi (both grades)

Thermal:

  • Conductivity: ~16 W/m·K

  • Expansion Coefficient: ~17 μm/m·°C



Product Forms & Ends

Shapes: Seamless, welded (ERW/SAW), and specially formed stainless steel filter tube 304/316 in round, square, or custom-engineered profiles. Available with perforations for filtering or solid construction for fluid transport.

Ends: Butt Weld (BW), Threaded (NPT/R thread), flanged ends for easy assembly in pipe networks. Custom end configurations supported based on your installation needs.


Applications

Industries:

  • Petrochemical systems requiring corrosion-resistant stainless steel tube infrastructure.

  • Water Treatment plants utilizing stainless steel filter tube 304/316 to purify drinking or process water.

  • Food Processing and Packaging: Safe for contact with consumables, ensuring hygienic operations.

  • HVAC systems: Utilized for ductwork, exhaust systems, and filtration tubes.

Use Cases:

  • Stainless steel filter tube 304/316: Applied in filtration systems, gas scrubbers, and liquid separation processes. Designed for extended life cycles in demanding conditions.

  • Stainless steel tube 304 vs. 316: Selection depends on environmental exposure (chlorides, marine) and overall system requirements. 304 Stainless Steel is best when budget and standard corrosion resistance are key, while 316 Stainless Steel is selected for high-performance durability.



Why Choose 304/316 Stainless Steel?

  • Durability: Both 304 Stainless Steel and 316 grades are engineered for long-term performance. 316 is particularly useful in harsh, salt-laden, or chemically active settings.

  • Flexibility: Widely manufactured into sheet, rod, wire, mesh, and especially stainless steel tube and stainless steel filter tube 304/316.

  • Ease of Fabrication: Readily weldable, formable, and machinable to match complex system layouts.

  • Cost-Effective Options: 304 Stainless Steel offers a more economical solution for general-purpose use. For critical exposure zones, 316 offers superior lifecycle value.



Contact Us

Reach out for bulk order discounts, technical specifications, and tailored manufacturing services. We provide full documentation and support for all stainless steel tube and stainless steel filter tube 304/316 needs. From sourcing raw materials to finished delivery, our team ensures reliable, timely service for industrial and commercial applications.

(Custom sizes and specifications available. Confirm with sales.)
